15m Span Heavy Mechanized Bridge With Advanced Engine, Gearbox For Dry Gaps and Marshland

15m Span Heavy Mechanized Bridge With Advanced Engine, Gearbox For Dry Gaps and Marshland
15m Span Heavy Mechanized Bridge With Advanced Engine, Gearbox For Dry Gaps and Marshland 15m Span Heavy Mechanized Bridge With Advanced Engine, Gearbox For Dry Gaps and Marshland 15m Span Heavy Mechanized Bridge With Advanced Engine, Gearbox For Dry Gaps and Marshland 15m Span Heavy Mechanized Bridge With Advanced Engine, Gearbox For Dry Gaps and Marshland

Large Image :  15m Span Heavy Mechanized Bridge With Advanced Engine, Gearbox For Dry Gaps and Marshland

Product Details:
Place of Origin: China
Brand Name: Harzone
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Packaging Details: According to detailed order
Delivery Time: negotiation
Payment Terms: According to detailed order
Detailed Product Description
Material: Steel Bridge Feature: Reusable
Capacity: Heavy Loading Capacity Structure: Simple
Status: Sefl Fold And Unfold
High Light:

military Bridge

,

Wheel Type Striking Bridge


15m Span Heavy Mechanized Bridge With Advanced Engine, Gearbox For Dry Gaps and Marshland




Description:

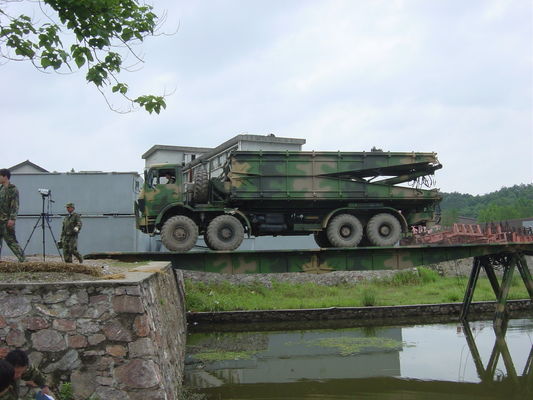

Heavy Mechanized Bridge is a set of equipment mainly used for bridging small and medium rivers, dry gaps and marshland with a length within 75m and a depth within 5.5m to ensure all sorts of tanks, artilleries and vehicles, and personnel to get across.



The complete set consists of five transport vehicles with bridge spans with a length of 15m. The chassis is type XC2300/8×8 15T class cross-country truck, with advanced engine, gearbox and axles etc. The trestles are controlled by hydraulic winch; the outriggers ban be adjusted by automatic control technology, with double class hydraulic cylinders. The bridge is erected with shear style erection, and span stretching at mean time to keep safety and stability in erection.



Specification:



Total weight

30.6t

Folded outline dimension (L*W*H)

10890*3150*3660 mm

Tracked load

60t

Axle load

13t

Roadway width

3.8m

Span length

15m

Max. bridge length

75m

Max. height (from shoes to deck)

5.5m

Erection time for a single span

12 min

Max. current velocity

2m/s

Operator

7 operators for a single span
